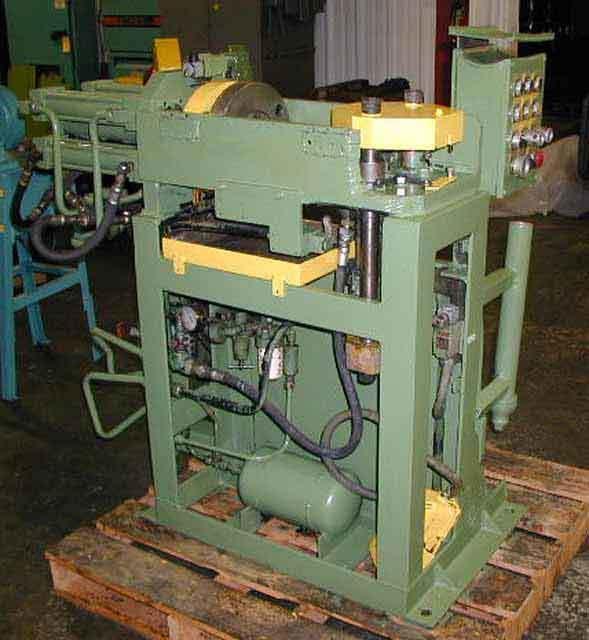

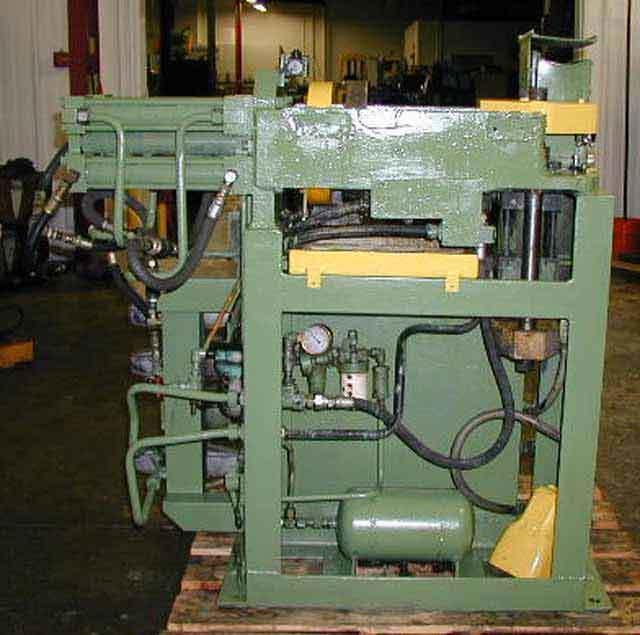

2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer

Type
Swagers

Manufacturer
MITCHELL

Model
In-Line Hydraulic Push Pointer

Year
1982

Stock #
8147

Condition
Used

Request a Quote
2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
  • 2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
  • 2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
  • 2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
  • 2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
  • 2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
  • 2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer
  • 2" (50mm) Mitchell 12,500 lb (5760 KG) 2 Die Hydraulic Push Pointer

Specifications

Equipped With SPECIFICATIONS:
MANUFACTURER: GEORGE A MITCHELL CO
TYPE: IN-LINE HYDRAULIC PUSH POINTER
YEAR OF MANUFACTURE: 1982
SERIAL No.: 378
MAXIMUM TUBE O.D.: 2" (50mm)
MINIMUM TUBE O.D.: 1/2" (12.7mm)
RATED CAPACITY: 12,500 LB. @ 1989 PSI
MAXIMUM CAPACITY: 14,100 LB. @ 2250 PSI
No. OF DIES: 2

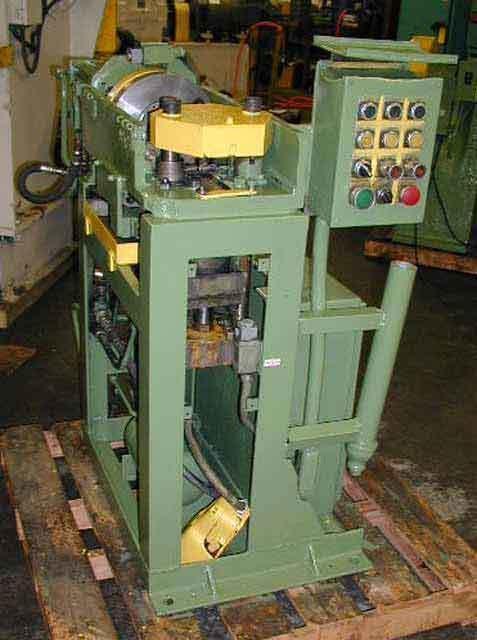

WITH OPERATOR PUSH STATION CONSOLE AND FOOT PEDAL SWITCH
POINTING SPEEDS:
ADVANCE: 397 IPM @ 2000 PSI
RETRACT: 550 IPM @ 1000 PSI

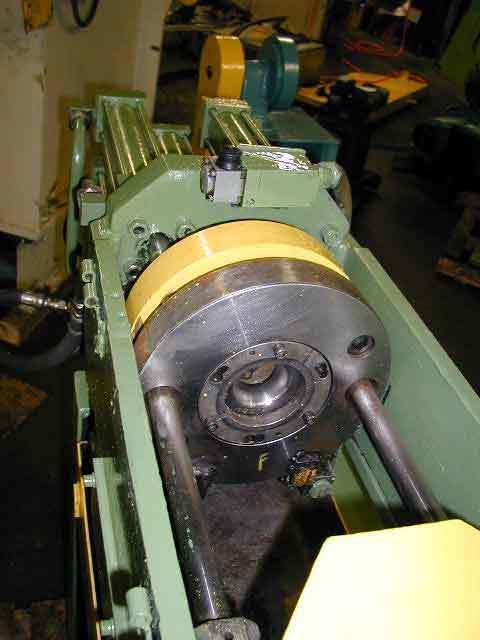

DIE CASE SIZE: 2"- 4" O.D. x 1" THICK

REF. DWG.
SECTIONAL ARRANGEMENT: 5749
GENERAL ARRANGEMENT: 5783

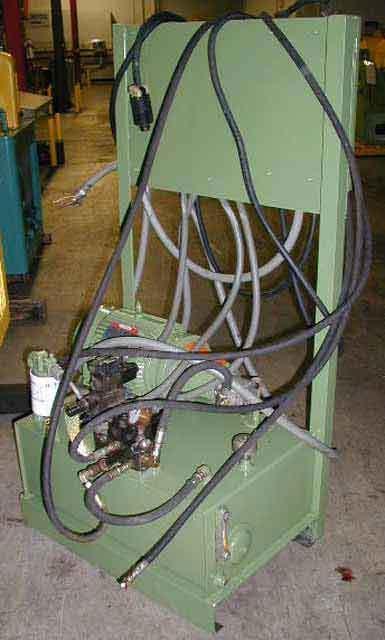

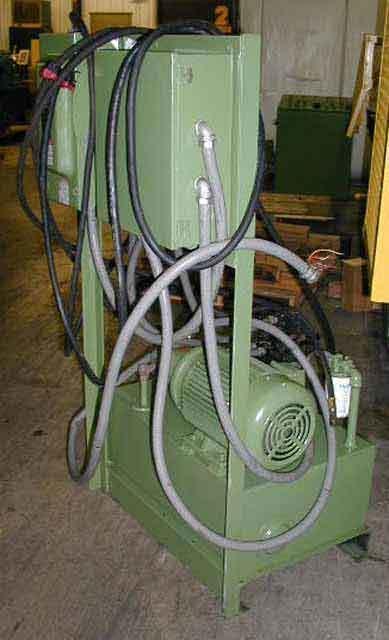

HYDRAULIC UNIT:
MOTOR: 7 1/2 HP, 1750 RPM, 21-20/10 AMPS,
480 VOLTS, 3 PHASE, 60 HERTZ
